Freedom 500 Series Windlass Kit

The Freedom Series of automatic rope/chain windlasses incorporate Maxwell's design technology for rope to chain spliced rodes. Freedom's unique, compact design and elegant styling, has made it the primary choice of both boat builders and boat owners around the world. An independent test report rates freedom as the number one automatic rope/chain windlass in its class.

Kit Includes:

• P100000 - FREEDOM RC500 Dmc154 12v
• P10068 - 800W Motor
• P100711 - PM Solenoid Pack 12V
• P19220 - Up/Down Anchor Switch
• P100790 - 80 Amp Breaker/Isolator

Features:

• Maxwells revolutionary design automatically feeds anchor rode into and out of the anchor locker allowing effortless handling of rope/chain rodes.
• Sleek, captive on deck design for smooth, snag free operation.
• Maxwells unique performance plate (supplied with winch), in combination with the use of 8 plait nylon rope, will ensure trouble free performance.
• High speed, jam free retrieval of rope and chain from remote control stations.
• Dual direction, power up and down operation.
• Cone type clutch/brake mechanism permits manual "free fall" anchoring. A cone clutch, unlike a dog clutch provides smooth disengagement of the chainwheel.
• Simplified modular installation without disassembly of windlass.
• Alternative gearbox/motor positions accommodate virtually all installation situations.
• Manual override using the emergency crank handle provided.
• Marine-grade, hard anodised alloy housing finished in metallic charcoal.
• Full disassembly capability of topworks utilising handle provided and a screwdriver no special tools required.
• Heavy duty, dual direction motor, designed for marine winches, isolated ground type, with durable class F insulation. Easily removed for servicing.
• Sealed oil bath and marine-grade anodised alloy gearbox provides a robust output drive via precision worm and wormwheel.
• Trouble free transition from rope to chain by means of an innovative pressure arm system within a safer enclosed design.

Specifications:

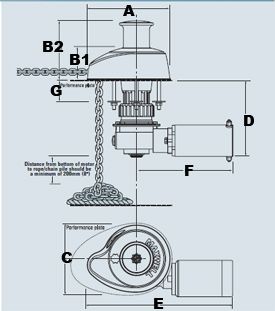

Dimensions:

Important Note: Maxwell windlasses must be used in conjunction with a chain stopper and/or alternative snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.

Capstan NOT included
